A pump can have the correct flow, head, motor, and controls yet still fail early at one small point: the shaft seal. This mechanical seal guide explains how to identify the right seal, avoid common installation damage, and recognize when a leaking seal is signaling a larger operating problem.

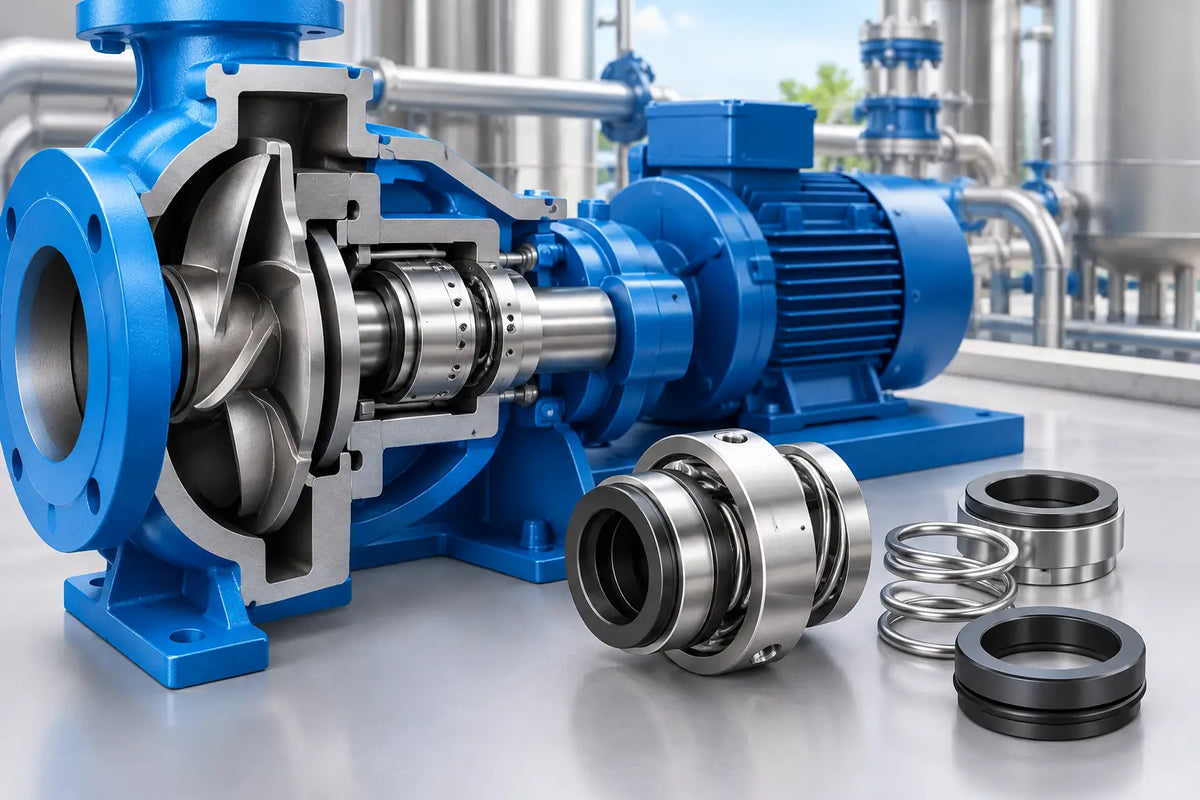

Mechanical seals are used on centrifugal pumps and other rotating equipment to contain fluid where a rotating shaft passes through a stationary pump housing. Unlike packing, a mechanical seal uses precisely lapped seal faces that run against one another with a controlled fluid film between them. When the seal, materials, and operating conditions match, leakage is minimal and service life is predictable. When they do not match, failure can be rapid.
How a Mechanical Seal Works
A typical mechanical seal has two primary faces: a stationary seat installed in the seal plate or housing and a rotating face carried by the shaft. Springs or bellows apply closing force, while system pressure helps hold the faces together. Secondary seals, usually O-rings, gaskets, or elastomers, prevent fluid from bypassing around the seal components.
The faces must remain flat, clean, lubricated, and properly aligned. A very thin fluid film lubricates the faces during operation. That detail matters because a seal is not designed to run dry. Even a brief dry-run event can overheat the faces, crack carbon components, distort elastomers, or leave a damaged track that causes ongoing leakage.
A mechanical seal is therefore not selected by shaft diameter alone. It is a system component that must suit the pumped liquid, temperature, pressure, shaft speed, pump design, and expected duty cycle.
Mechanical Seal Guide: Start With the Application
Before ordering a replacement, record the equipment details and the conditions at the point of failure. The pump model and serial information are useful, but they should not be the only basis for selection. Pumps are often modified, rebuilt, or fitted with different motors and wetted components over their service life.
Start with the liquid. Clean, cool water is relatively forgiving. Wastewater, slurry, chemical solutions, hot water, oils, solvents, and fluids containing abrasive solids require closer attention. Sand, grit, iron oxide, and suspended solids can wear seal faces and elastomers. Corrosive fluids can attack metal components, springs, and secondary seals. A seal that performs well in irrigation water may not survive a chemical transfer or wastewater application.
Next, verify operating conditions. Confirm suction conditions, discharge pressure, maximum fluid temperature, motor speed, and whether the pump experiences frequent starts and stops. Also consider whether the pump can run against a closed valve, lose prime, or operate intermittently. These conditions affect seal heat, face loading, and lubrication.
For procurement and maintenance teams, the most useful information to keep on file includes:
- Pump manufacturer, model, and serial number
- Shaft diameter and seal chamber dimensions
- Seal type, face materials, and elastomer material
- Pumped fluid, concentration, temperature, and solids content
- Motor speed, pressure, flow range, and operating schedule
- Photos of the old seal, shaft sleeve, impeller, and seal housing
Select Materials for the Fluid, Not Just the Price
Mechanical seal materials are selected as a set. The face pair, elastomers, metal hardware, and spring arrangement all affect compatibility.
Carbon is commonly used as one seal face because it provides good lubricity and can tolerate minor alignment variation. Ceramic is a common mating face for clean water service and is economical, but it is brittle and has limits in abrasive or severe thermal applications. Silicon carbide offers excellent wear resistance, thermal conductivity, and chemical resistance in many demanding applications. Tungsten carbide is extremely hard and can be a strong choice for abrasive service, though its suitability still depends on chemistry and face pairing.
Elastomer selection is equally important. Buna-N is commonly used for water and many petroleum-based fluids. EPDM is often suitable for hot water and some water-treatment chemicals, but it is not appropriate for many oils. Fluoroelastomer materials are often selected for higher temperatures and a wider range of chemicals. Compatibility must be checked against the actual liquid, including cleaners, disinfectants, additives, and concentration levels.
There is a trade-off between cost and duty. A basic carbon-and-ceramic seal may be the right value for a clean-water utility pump. For a wastewater, chemical, or abrasive process pump, an upgraded face combination can cost more initially but reduce downtime, labor, lost production, and repeated replacement purchases.
Match the Seal Design to the Pump
Mechanical seals are not universally interchangeable. Common arrangements include component seals, cartridge seals, single spring designs, multiple spring designs, wave spring designs, and bellows seals. The pump's seal chamber geometry, shaft or sleeve dimensions, and impeller arrangement determine what will fit and function correctly.
A replacement seal must match the shaft size and the critical working lengths. It must also match the stationary seat outside diameter, seat cup style, and installed height. A small difference in a seal seat can cause leakage, cracking, or poor face contact.
Pay attention to rotation when applicable. Some seals are designed for a specific direction of shaft rotation. Using the wrong rotation can reduce spring loading or cause the rotating assembly to loosen. If the pump has been repaired, verify motor rotation before final startup, especially on three-phase equipment where phase sequence can change rotation direction.
For pumps handling solids or difficult fluids, the seal may be only one part of the protection strategy. A flush arrangement, external seal water, seal chamber cooling, a proper strainer, or a different pump configuration may be needed. Replacing the seal without correcting the source of contamination or heat only postpones the next failure.
Installation Practices That Protect the New Seal
A new seal can be damaged before the pump is ever started. Work on a clean bench and keep the lapped faces free from grit, fingerprints, and handling damage. Do not touch the polished face surfaces unless necessary. If they are handled, clean them with a lint-free material and a compatible cleaner.
Inspect the shaft or sleeve before installation. Grooves, corrosion, burrs, and sharp edges can cut an O-ring or prevent the rotating element from seating correctly. Lightly deburr sharp edges and replace a deeply worn sleeve. Also inspect the seal housing and stationary-seat bore for corrosion, buildup, or damage.
Use a suitable lubricant sparingly on elastomers only when the seal instructions and fluid compatibility allow it. Petroleum grease can damage some elastomers and contaminate certain services. Never force a ceramic seat or seal face into place. Uneven pressure can chip the component or crack the seat.
After reassembly, turn the shaft by hand to confirm it rotates freely. Prime the pump completely before startup. Open the appropriate valves, establish suction, and ensure the pump casing and seal area have fluid. A dry mechanical seal can fail in seconds.
Diagnose Leakage Before Replacing Another Seal
Not every leak at a pump means the mechanical seal alone is defective. Observe where the liquid is coming from. Leakage from the seal chamber drain or weep area often indicates a seal issue. Leakage from a flange, casing gasket, fitting, or pipe connection calls for a different repair.
A seal that leaks immediately after installation may have a cracked seat, incorrect installed length, damaged O-ring, contaminated face, or incorrect part number. Leakage that begins after weeks or months can point to dry running, cavitation, bearing wear, shaft runout, overheating, chemical attack, or solids abrasion.
Vibration is a common underlying cause. Worn bearings, bent shafts, pipe strain, misalignment, and unstable suction conditions can prevent the seal faces from tracking correctly. Cavitation can create noise, vibration, reduced flow, and repeated seal damage. Check the whole pumping system rather than treating seal replacement as an isolated maintenance task.
A practical inspection sequence is to verify prime and suction conditions first, then check system pressure and valve position, inspect coupling alignment and bearings, and finally examine the removed seal faces. Bluing, cracking, heavy scoring, uneven wear, or swollen elastomers often reveal the failure mode.
Stock the Parts That Prevent Extended Downtime
For critical pumps, keeping only a spare mechanical seal is not always enough. A repair-ready inventory may also include seal housing gaskets, O-rings, shaft sleeves, impeller hardware, bearings, couplings, strainers, valves, and compatible tools. The right stock level depends on lead time, pump criticality, and the consequences of a shutdown.
Water Services Inc supports pump, water-treatment, wastewater, and industrial maintenance buyers with the related equipment and installation components needed to keep fluid systems operating. When identifying a replacement, compare all available specifications rather than relying on a visual match.
The best seal choice is the one that fits the pump, withstands the liquid, and operates within the system's real conditions. Treat every seal failure as useful evidence: it can point to a material mismatch, an installation issue, or a pump system condition that deserves correction before the next startup.
